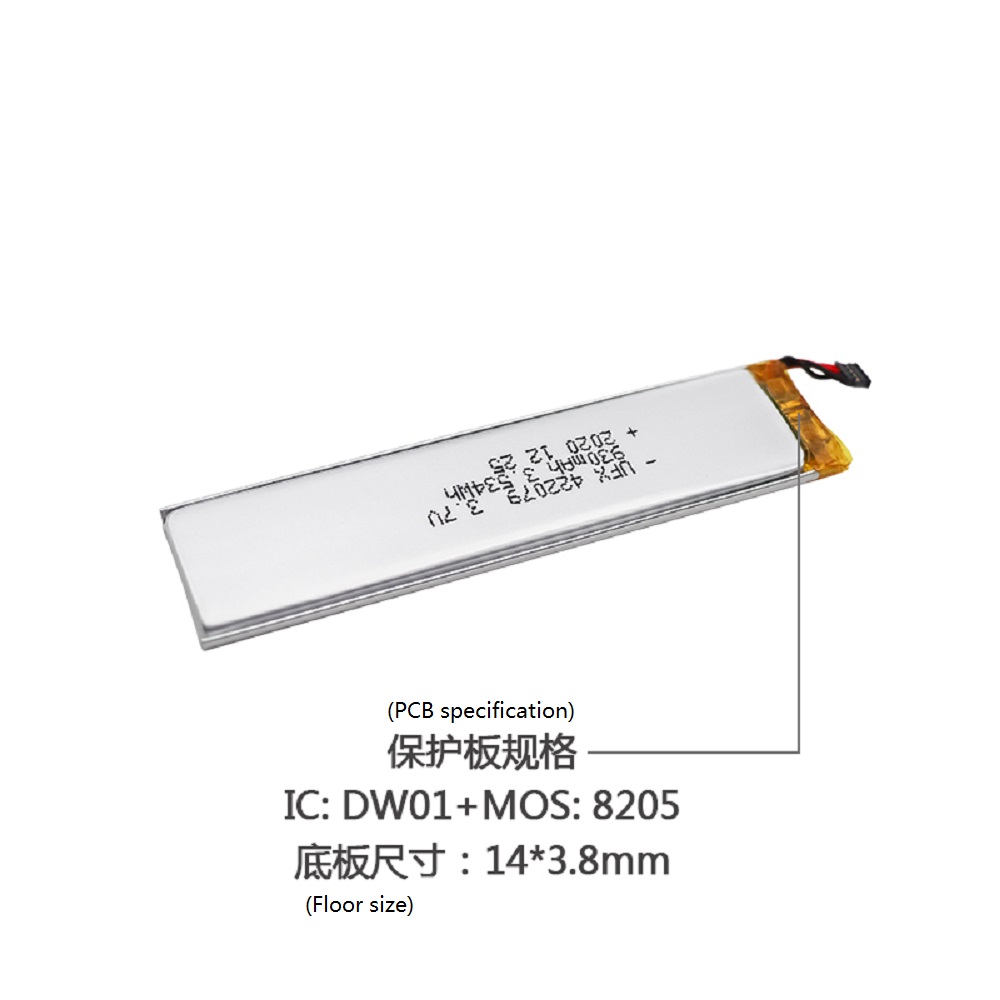

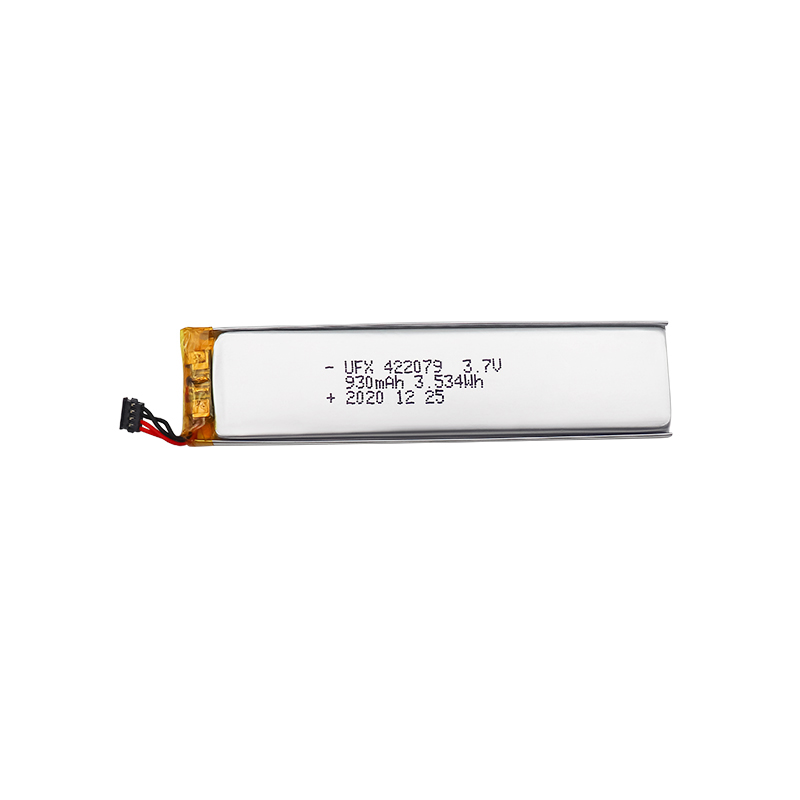

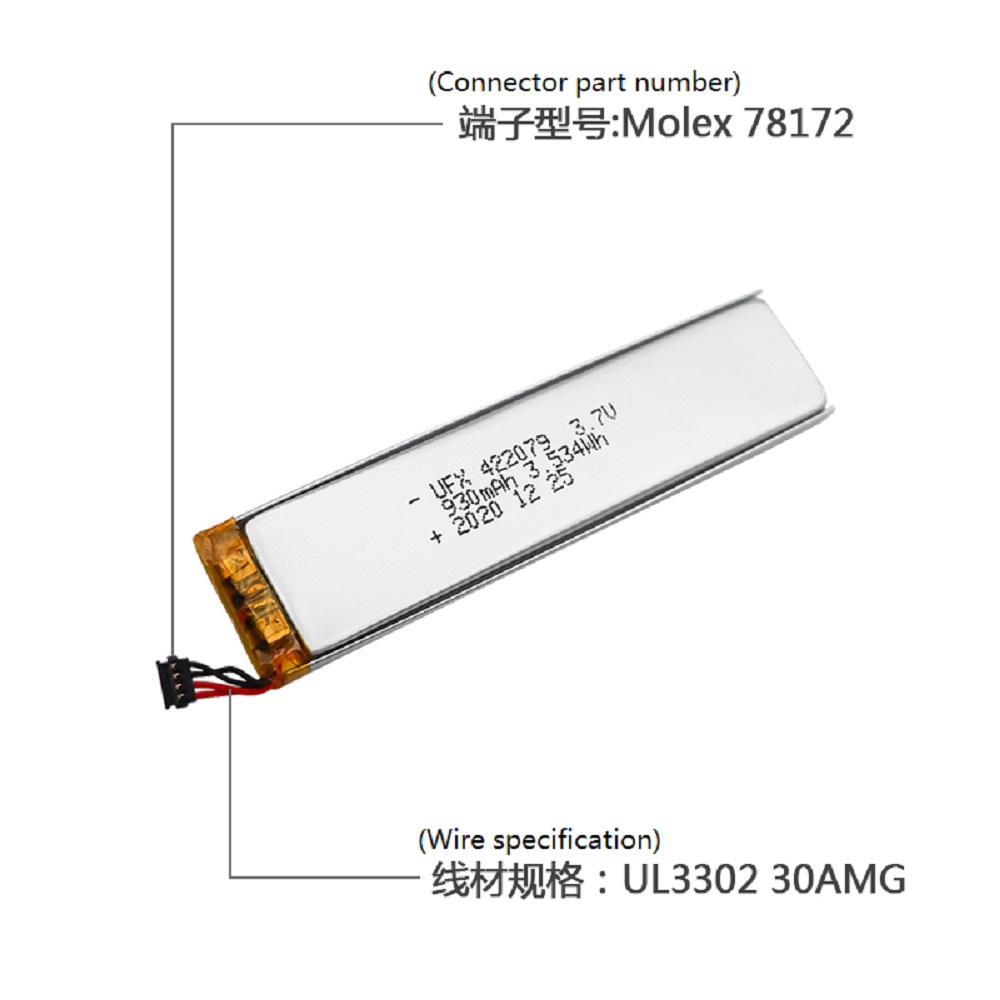

도매 전기 스마트 장난감 Lipo 배터리 UFX 422079 930mAh 3.7V 리튬 폴리머 배터리
가격 : US $ 1.2-1.5 / 암페어
Min. 주문 : 2,000 암페어
주문 하시려면 저희에게 문의하십시오!
- 원산지 : 광동, 중국
브랜드 이름 : UFX
모델 번호 : 422079
유형 : 리튬 폴리머
명목상 전압 : 3.7V
크기 : 4.2 * 20 * 81mm
공칭 용량 : 930mAh
제품 이름 : UFX 422079 리튬 이온 배터리
보증 : 1 Year
무게 : 16g
주기 생활 : 500 배
신청 : Electric Smart Toy Battery
증명서 : UN38.3 / CE / MSDS / ROHS
지불 : Paypal.TT.Escrow.Western Union
최대 충전 전류 : 1C
Product Parameters
|
No. |
Item |
General Parameter |
Remark |
|
|
1 |
Rated Capacity |
Typical |
930mAh |
Standard discharge(0.2C C5A) after Standard charge |
|
Minimum |
930mAh |
|||
|
2 |
Nominal Voltage |
3.7V |
Mean Operation Voltage |
|
|
3 |
Voltage at end of |
3.0V |
Discharge Cut-off Voltage |
|
|
Discharge |
||||
|
4 |
Charging Voltage |
4.2±0.03V |
||
|
5 |
Internal Impedance |
≤115mΩ |
Internal resistance measured at AC 1KHZ after 50% charge |
|
|
The measure must uses the new batteries that within one week after shipment and cycles no more than 5 times |
||||
|
6 |
Standard charge |
Constant Current 0.2C5A |
Charge time : Approx 6h |
|
|
Constant Voltage 4.2V |
||||
|
0.01 C5A cut-off |
||||
|
7 |
Standard discharge |
Constant current 0.2 C5A |
||
|
end voltage 3.0V |
||||
|
8 |
Fast charge |
Constant Current 0.5C5A |
Charge time : Approx 2.5h |
|
|
Constant Voltage 4.2V |
||||
|
0.01 C5A cut-off |
||||
|
9 |
Fast discharge |
Constant current 0.5C5A |
||
|
end voltage 3.0V |
||||
|
10 |
Maximum Continuous Charge Current |
1 C5A |
||
|
11 |
Maximum Continuous Discharge Current |
1 C5A |
||
|
12 |
Operation Temperature Range |
Charge: 0~45℃ |
60±25%R.H. |
|
|
Bare Cell |
||||
|
Discharge: -20~60℃ |
||||
|
13 |
Storage Temperature Range |
Less than 1 year: -20~25℃ |
60±25%R.H. |
|
|
less than 3 months: -20~40℃ |
at the shipment state |
|||
|
14 |
Pack Dimension |
High: max81mm Width: max20mm Thickness:max42mm |
Initial Dimension |
|
