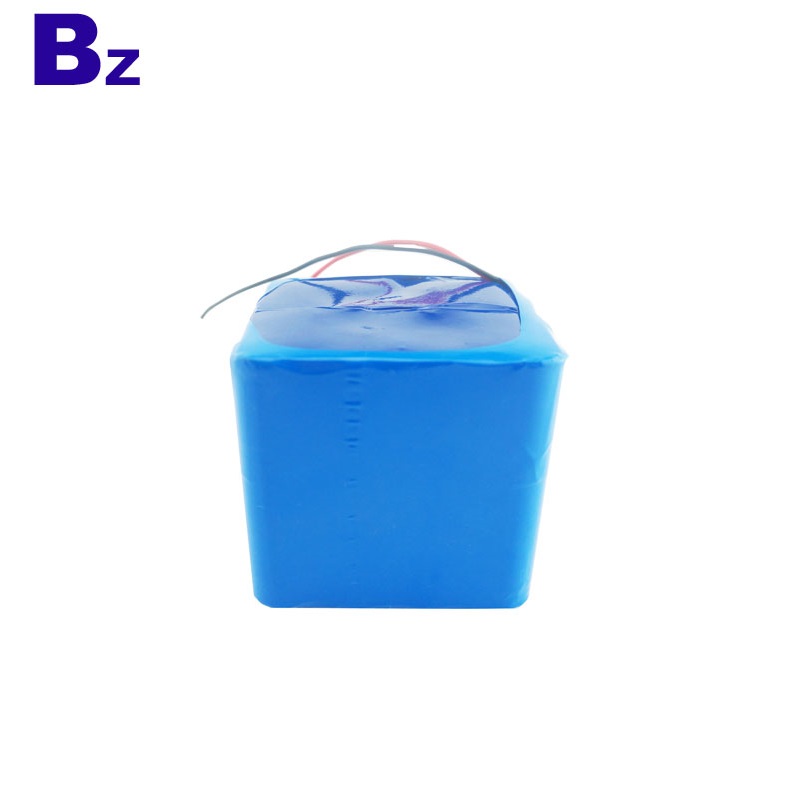

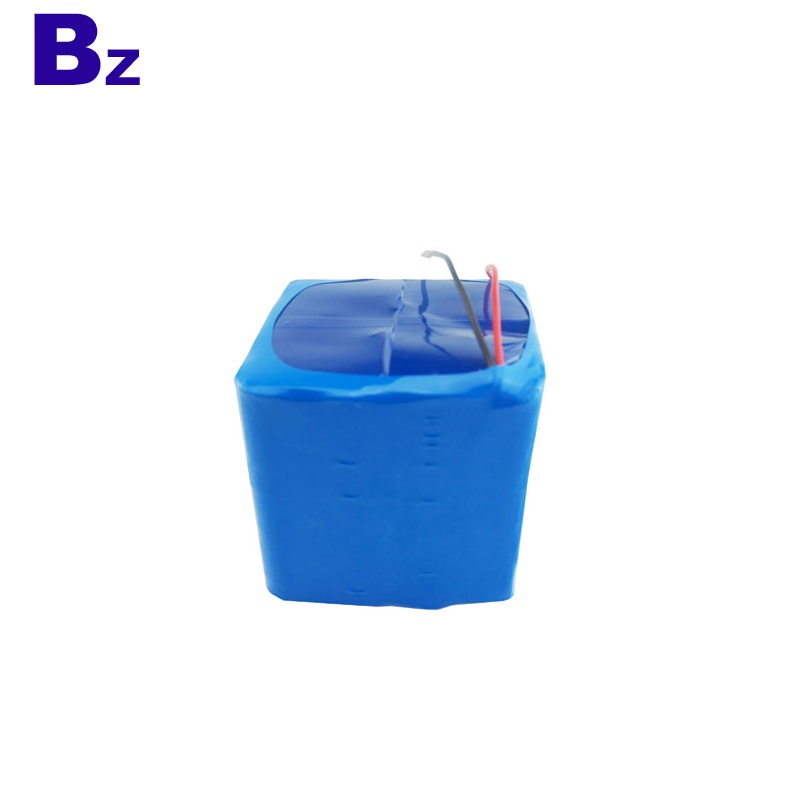

전기 자전거 배터리를 공급하는 중국의 리튬 이온 배터리 제조업체 BZ 18650 2P7S 25.9V 5200mAh 충전식 리튬 이온 배터리
$24.50
In stock
SKU
BZ 18650 2P7S 25.9V 5200mAh
가격 : US $ 23-24.5 / 개
최소 주문 : 500 조각
주문 문의하시기 바랍니다!
모델 번호 : 18650 2P7S
유형 : 리튬 이온
공칭 전압 : 25.9v
크기 : MAX68 × 74 × 74mm
공칭 용량 : 5200mAh
무게 : 636g
사이클 수명 : 500 회 이상
BZ 18650-2P7S 25.9V 5200mAh rechargeable li-ion battery
| No. | Item | General Parameter | Remark | |
| 1 | Rated Capacity | Typical | 5200mAh | Standard discharge（0.2C C5A) after Standard charge |
| Minimum | 5400mAh | |||
| 2 | Nominal Voltage | 25.9V | Mean Operation Voltage | |
| 3 | Voltage at end of | 19.6V | Discharge Cut-off Voltage | |
| Discharge | ||||
| 4 | Charging Voltage | 29.4±0.03V | ||
| 5 | Internal Impedance | ≤500mΩ | Internal resistance measured at AC 1KHZ after 50% charge | |
| The measure must uses the new batteries that within one week after shipment and cycles no more than 5 times | ||||
| 6 | Standard charge | Constant Current 0.2C5A | Charge time : Approx 6h | |
| Constant Voltage 29.4V | ||||
| 0.01 C5A cut-off | ||||
| 7 | Standard discharge | Constant current 0.2 C5A | ||
| end voltage 3.0V | ||||
| 8 | Fast charge | Constant Current 0.5C5A | Charge time : Approx 2.5h | |
| Constant Voltage 19.6V | ||||
| 0.01 C5A cut-off | ||||
| 9 | Fast discharge | Constant current 0.5C5A | ||
| end voltage29.4V | ||||
| 10 | Maximum Continuous Charge Current | 1 C5A | ||
| 11 | Maximum Continuous Discharge Current | 1C5A | ||
| 12 | Operation Temperature Range | Charge: 0~45℃ | 60±25%R.H. | |
| Bare Cell | ||||
| Discharge: -20~60℃ | ||||
| 13 | Storage Temperature Range | Less than 1 year: -20~25℃ | 60±25%R.H. | |
| less than 3 months: -20~40℃ | at the shipment state | |||
| 14 | Pack Dimension |
High: max74mm Width: max74mm Thickness: max68mm |
Initial Dimension | |
