중국 최고의 리튬 배터리 제조 업체 ODM 디지털 기기 용 배터리 BZ 401525 110mAh 3.7V 리튬 이온 폴리머 배터리
$0.95
In stock
SKU
BZ 401525
가격 : US $ 0.86-0.95 / 개
최소 주문 : 5,000 조각
주문 문의하시기 바랍니다!
유명 상표 : BZ
모델 번호 : 401525
유형 : 리튬 폴리머
명목상 전압 : 3.7V
크기 : 4 * 15 * 25mm
공칭 용량 : 110mAh
상품명 : 401525 리튬 이온 배터리
보증 : 1 년
무게 : 2g
사이클 수명 : 500 회
용량 : 110mAh
전압 : 3.7V
신청 : 착용 할 수있는 장치
인증 : CE / RoHS / UN38.3 / MSDS
지불 : Paypal.TT.Escrow.Western Union
최대 충전 전류 : 1C

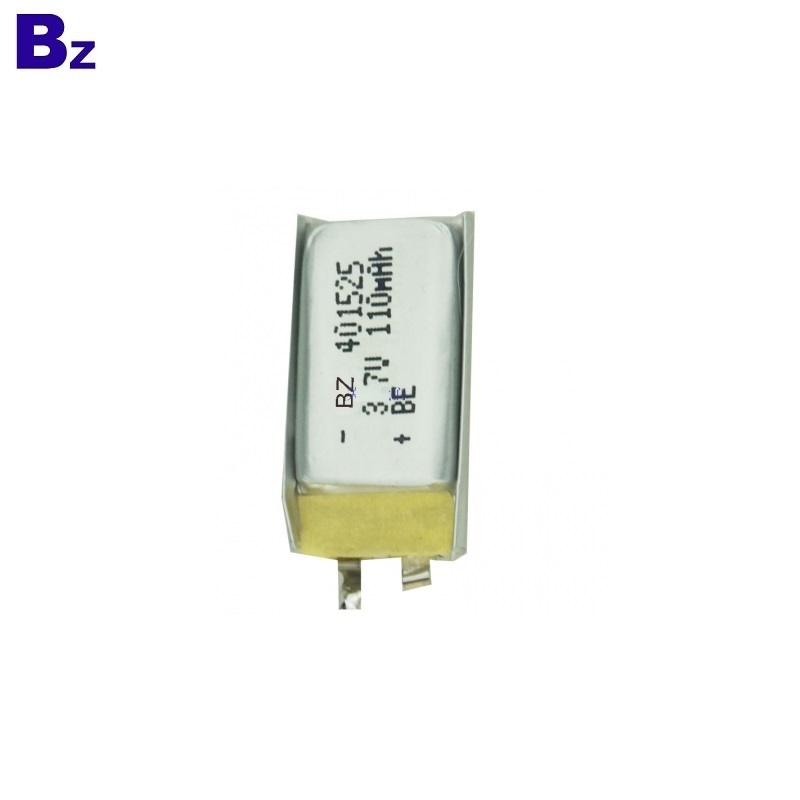

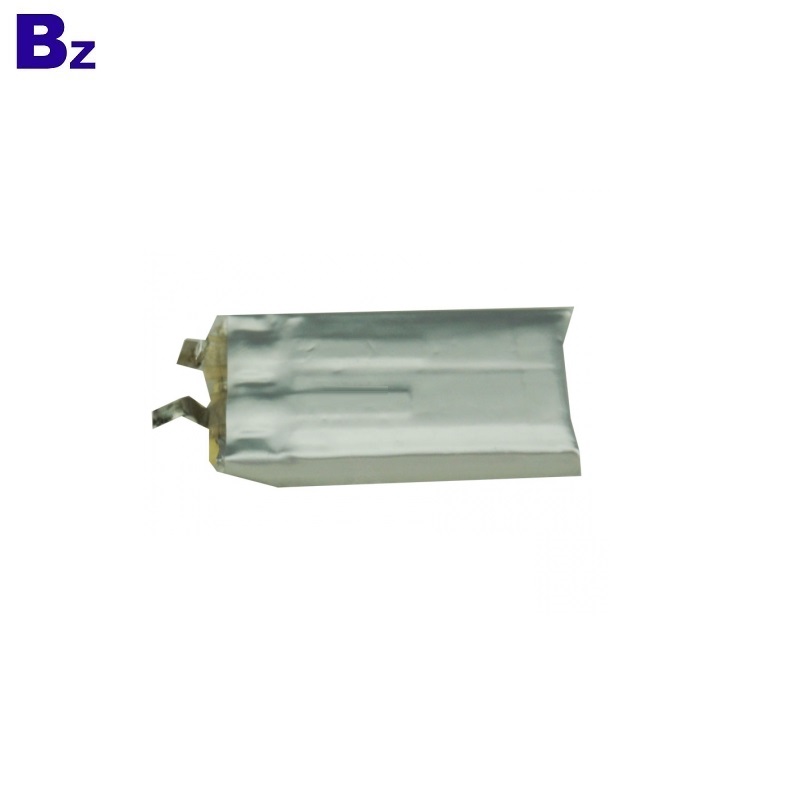

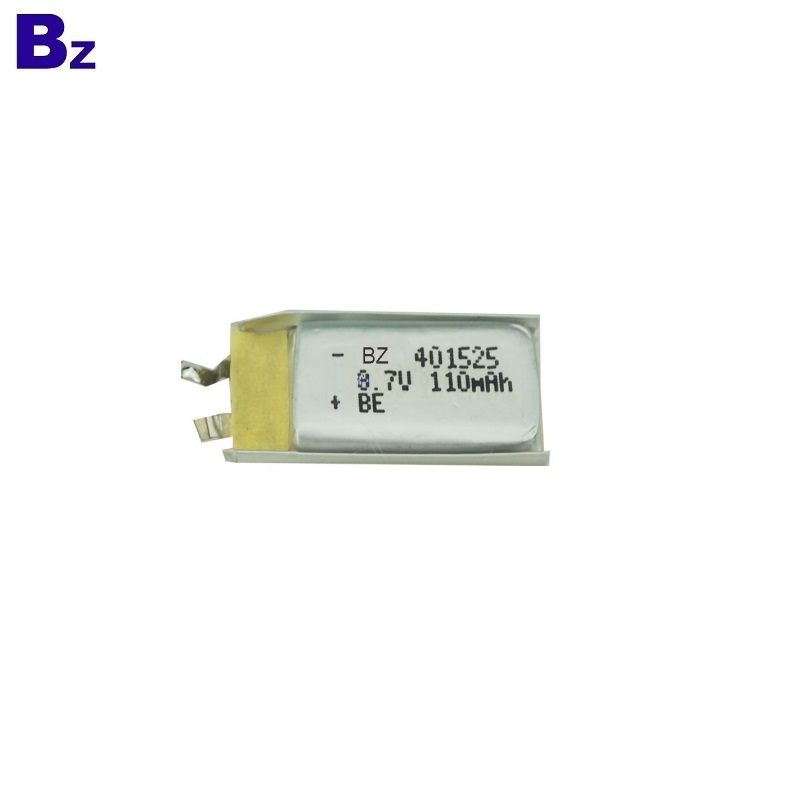

BZ 401525 110mAh 3.7V Cheap Lipo Battery
| No. | Item | General Parameter | Remark | |
| 1 | Rated Capacity | Typical | 115mAh | Standard discharge（0.2C C5A) after Standard charge |
| Minimum | 110mAh | |||
| 2 | Nominal Voltage | 3.7V | Mean Operation Voltage | |
| 3 | Voltage at end of | 3.0V | Discharge Cut-off Voltage | |
| Discharge | ||||
| 4 | Charging Voltage | 4.2±0.03V | ||
| 5 | Internal Impedance | ≤250mΩ | Internal resistance measured at AC 1KHZ after 50% charge | |
| The measure must uses the new batteries that within one week after shipment and cycles no more than 5 times | ||||
| 6 | Standard charge | Constant Current 0.2C5A | Charge time : Approx 6h | |
| Constant Voltage 4.2V | ||||
| 0.01 C5A cut-off | ||||
| 7 | Standard discharge | Constant current 0.2 C5A | ||
| end voltage 3.0V | ||||
| 8 | Fast charge | Constant Current 0.5C5A | Charge time : Approx 2.5h | |
| Constant Voltage 4.2V | ||||
| 0.01 C5A cut-off | ||||
| 9 | Fast discharge | Constant current 0.5C5A | ||
| end voltage 3.0V | ||||
| 10 | Maximum Continuous Charge Current | 1 C5A | ||
| 11 | Maximum Continuous Discharge Current | 1C5A | ||
| 12 | Operation Temperature Range | Charge: 0~45℃ | 60±25%R.H. | |
| Bare Cell | ||||
| Discharge: -20~60℃ | ||||
| 13 | Storage Temperature Range | Less than 1 year: -20~25℃ | 60±25%R.H. | |
| less than 3 months: -20~40℃ | at the shipment state | |||
| 14 | Pack Dimension |
High: max27mm Width: max15mm Thickness: max4mm |
Initial Dimension | |
